Custom Trim Bending
Precisely Formed Metal Trim for Clean Transitions
Custom Trim Bending in Lafayette for projects requiring exact angles and measurements at roof edges and wall junctions
Standard pre-formed trim comes in fixed angles that rarely match the actual conditions on site, leaving gaps where water enters or requiring multiple pieces where one continuous length would perform better. Custom trim bending produces metal trim formed to your specific measurements and angles, ensuring tight fits at roof rakes, eaves, valleys, wall caps, and corner transitions. Martin's Metal Supply operates trim bending equipment that forms flashing and trim pieces while you wait, eliminating the delays and fit problems associated with ordering pre-made components.

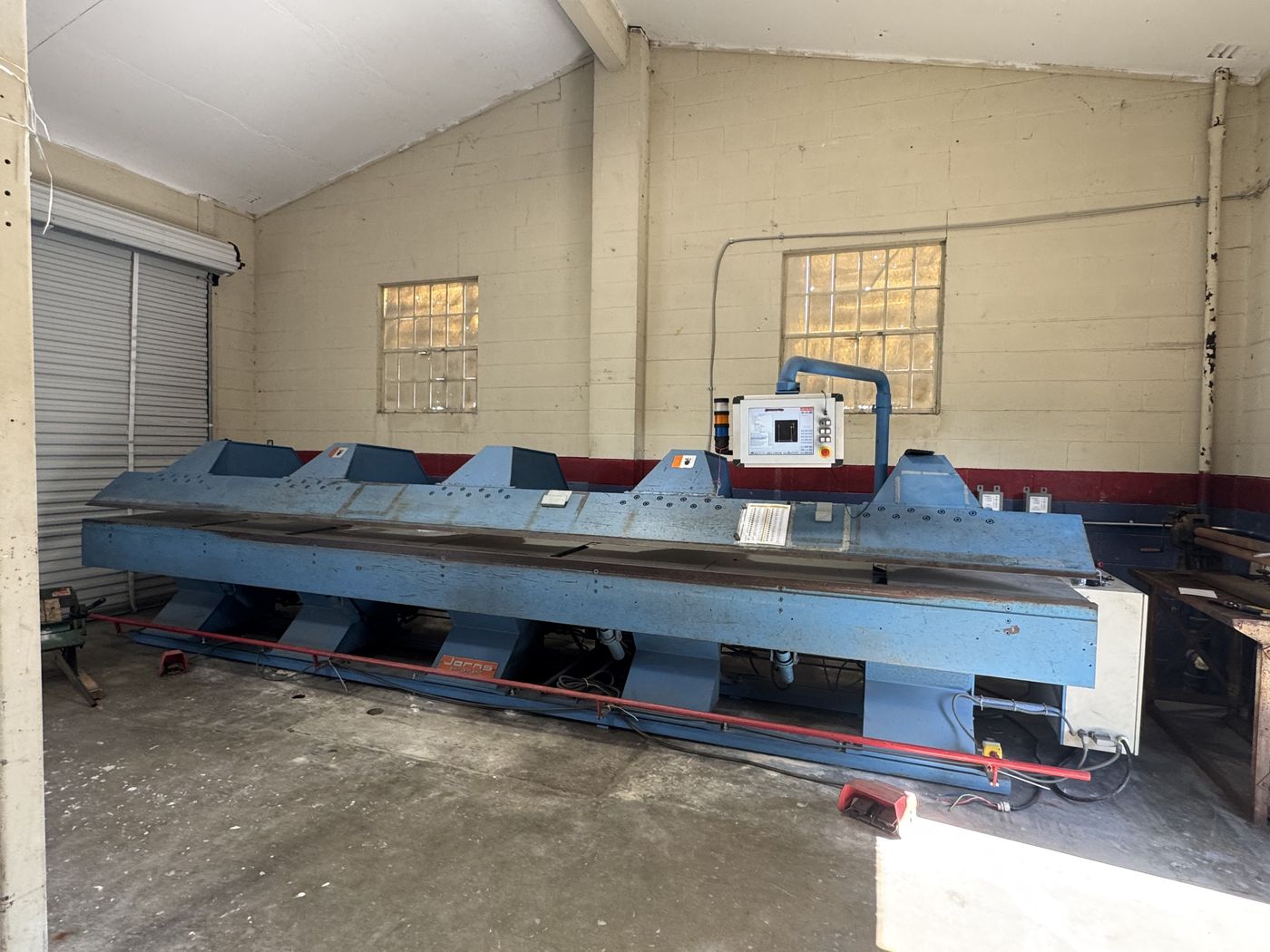

The bending process starts with your measurements for length, width, and bend angles, then feeds flat metal coil through a brake that creates crisp folds at precise points along the length. You provide dimensions for drip edges, ridge caps, J-channels, Z-flashing, corner trim, or any profile needed for your building, and the equipment forms it from the same gauge and finish as your panels.
Request custom trim bending for your next metal building or roofing project in Lafayette.
How Site-Specific Forming Eliminates Installation Problems
Roof slopes measured on plans often differ from actual angles by a degree or two, eave overhangs vary along the building length due to framing tolerances, and wall heights shift where foundations follow grade changes. Custom bent trim accounts for these variations by forming each piece to match actual site conditions rather than theoretical dimensions, which means trim sits flush against surfaces without requiring shimming, bending, or cutting that compromises the finish.
After installation with custom-formed trim, transitions appear continuous without visible gaps or overlapping patches, water sheds cleanly off edge details without sneaking behind flashings, and corner pieces meet at true angles rather than approximated joints. The finish remains consistent because all trim comes from the same coil stock as your panels rather than mixed lots with slight color variations.
Complex roof geometries with multiple pitch changes or valley intersections benefit most from custom bending, since standard trim would require cutting and piecing that creates potential leak points and interrupts the visual line of the roofline.
Questions Property Owners Have About Trim Fabrication
Customers planning metal building projects often need clarification about how custom trim differs from stock options and what measurements are required.
What information is needed to bend custom trim? You provide total length required, material gauge and color, bend angles measured in degrees, and the distances from edges to each bend line, which the brake operator translates into machine settings.
How does custom bending affect project timelines? Most trim pieces are formed within minutes while you wait at the Lafayette yard, allowing same-day pickup rather than the week or more required for special-order pre-formed trim.
Why does gauge matter when ordering custom trim? Heavier gauges resist denting and oil-canning on long unsupported spans but require more pressure to bend cleanly, while lighter gauges form tighter radius bends but may lack rigidity for exposed applications.

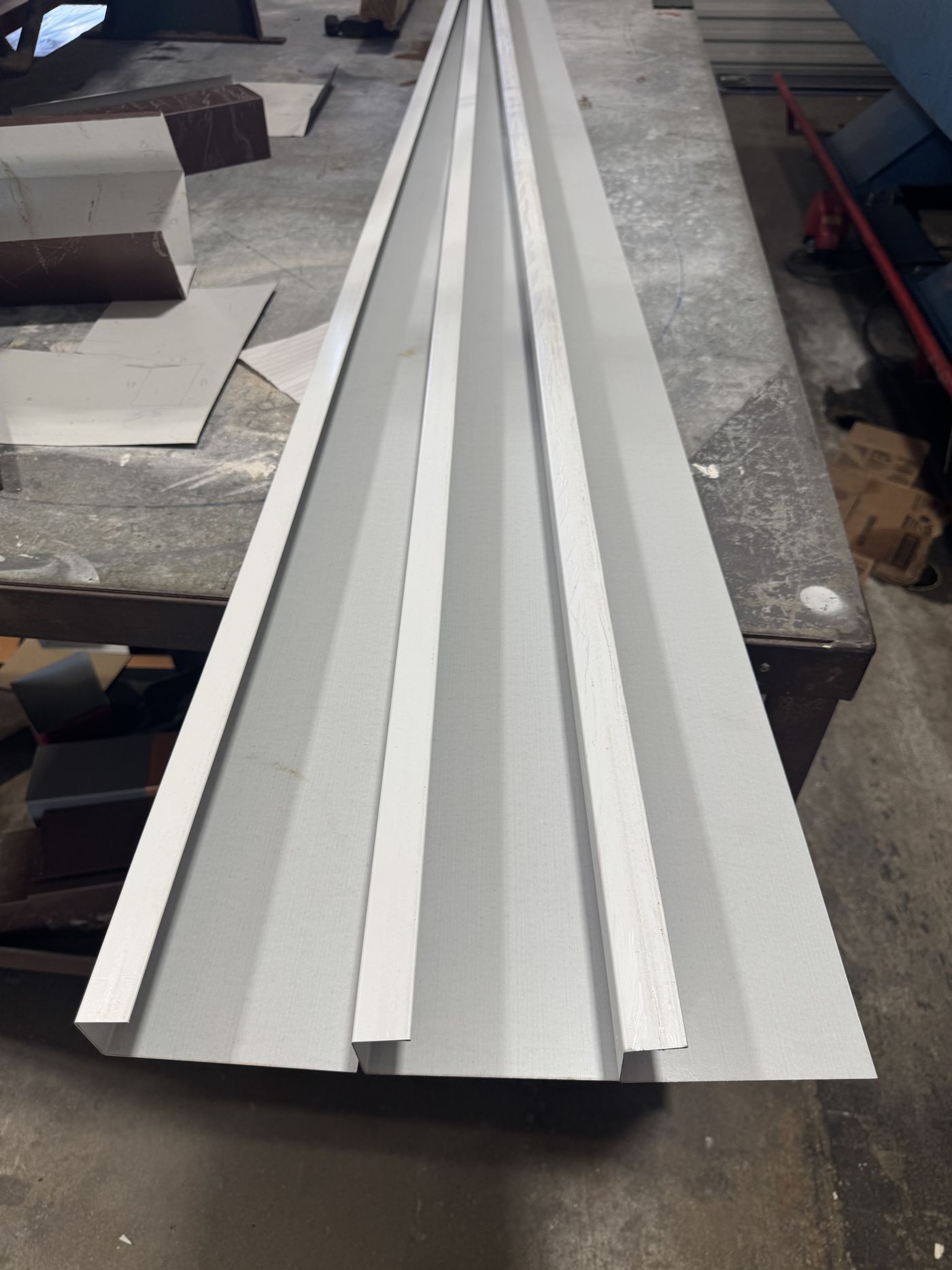

What's the longest single piece that can be bent? Equipment capacity determines maximum length, but forming trim in continuous runs up to twenty feet eliminates seams that would otherwise require overlapping and sealing on shorter stock pieces.
How do you match trim color to existing panels? Bringing a panel sample to Martin's Metal Supply allows direct comparison with available coil stock finishes, ensuring trim blends seamlessly rather than standing out due to slight color shifts between manufacturers.
Custom trim bending gives you control over fit and finish that pre-made components can't match. Martin's Metal Supply forms trim to your specifications using the same quality materials available for complete roofing systems, ensuring every detail works together as intended.
